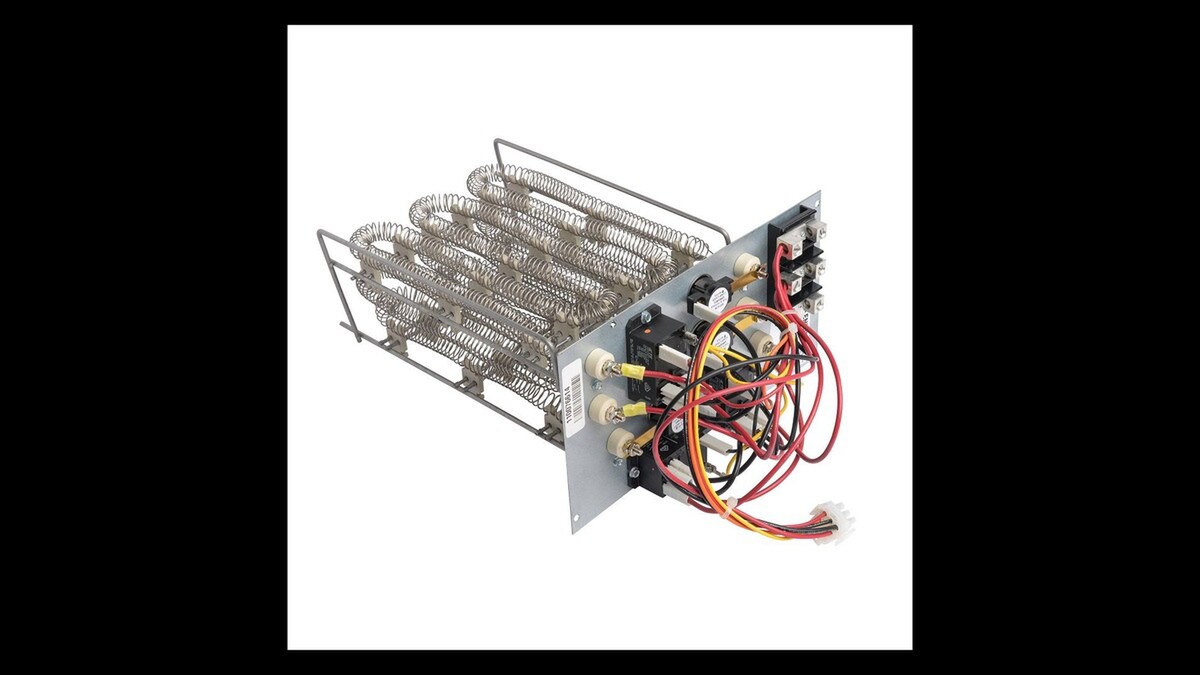

GE Heat Kit ECBA25-7.5 7.5kW (With Breaker) - E}CBA25-7.5-LC
Overview
ECBA25 Electric Heat Kits
ETL listed
Field install internal to unit cabinet
Available in several voltages and kW sizes, see specific Air Handler Tables
Helix wound nichrome heating elements exposed directly in air stream resulting in instant heat transfer, low element temperatures and long service life
Each element equipped with accurately located limit control with fixed temperature off setting and automatic reset
Supplemental thermal cutoff limit control, provides positive protection in case of excessive temperatures
Thermal sequencer relay brings elements on and off line, in sequence and equal increments, with time delay between each
Initiates and terminates blower operation
Heating control relay(s) furnished as standard
Control box and access cover constructed of heavy gauge galvanized steel
Factory assembled with controls installed and wired
Electric heat low voltage controls plug-in to air handler
Circuit Breaker (CB) Models
All “CB” model heaters are equipped with circuit breakers for overload and short circuit protection
Factory wired and mounted on electric heat unit
Current sensitive and temperature actuated
Manual reset
Circuit breakers qualify as disconnect means at unit in many areas, eliminate the need for field provided disconnect
Consult local electrical code in your area
Specifications
| Model/Part Number | ECBA25-7.5 |
| Base Unit of Measure | Unit(S) |
| Product Depth | 21.18 IN |
| Product Height | 6.5 IN |
| Product Width | 11.38 IN |
| Product Voltage | 208/230v 1ph 60 hz |
| Gross Weight | 3.5 LB |
| Heating Capacity | 7.5 kW |
| Type | Electric Heat Kit with Terminal Block |
| Series | ECBA25 |
| Product Voltage | 208-230 VAC 1 Ph |
| Heating Capacity | 7.5 kW |
| Type | Electric Heat Kit |
